EDM parachute system tests

EDM parachute system tests


Date: 04 March 2011
Depicts: Sub-scale high-altitude drop test
Location: Cambridge, UK
Copyright: CUSF, Vorticity

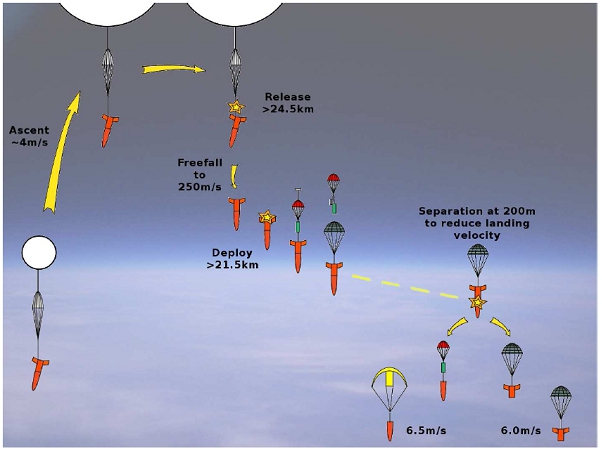

To the left is a schematic representation of a sub-scale high altitude drop test.

The balloon ascends to a test altitude of roughly 24.5 kilometres, after which a drop sequence is initiated via a radio uplink command. The EDM is then released from the balloon with a pyrotechnic device and experiences free-fall for 23 seconds. Following this, a test parachute is deployed with a pilot parachute. At 200 m (or at an altitude determined by uplink command), the EDM separates and the two stages land separately, reducing the impact at landing.

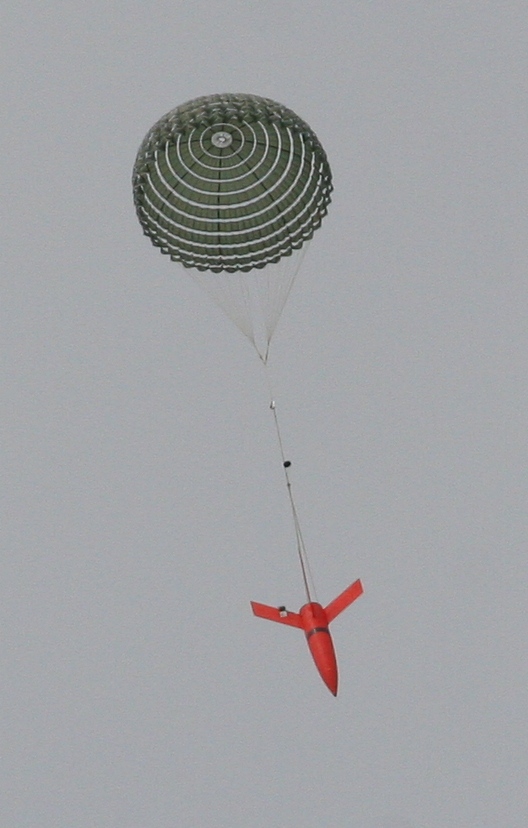

The image to the right shows the balloon and the rocket-shaped test vehicle during a sub-scale parachute high altitude drop test in the UK, in early 2011.

Last Update: 1 September 2019
